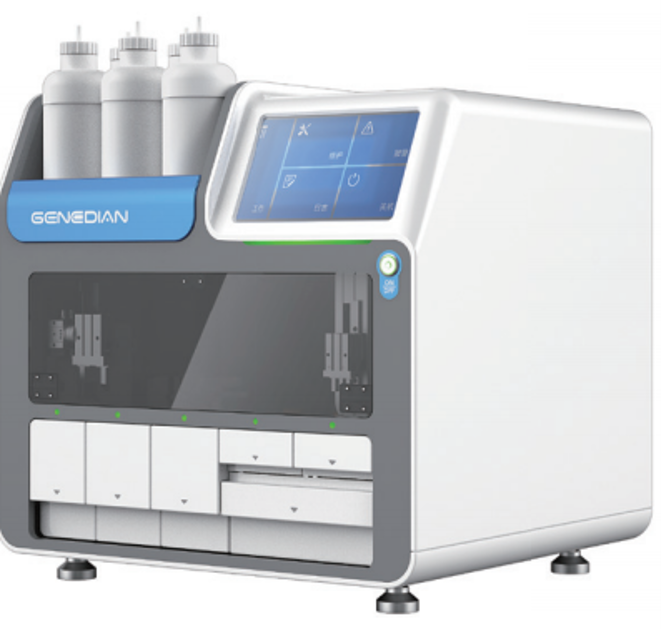

DC-2000 Plus – Technical Specifications

The LBC system (Liquid-Based Cytology) by DIAN LAB is a highly automated platform designed for the preparation and staining of cytology slides. It supports the screening of non-gynecological specimens as well as various types of cytological samples.

Applied Test Categories : PAP Smear, PAP (LBC) HPV, LBC HPV, PAP Smear

• Model: DC-2000 Plus

• Slide Preparation Principle: Membrane filtration

• Throughput: 20 slides per run

• Staining Time: 16 minutes per batch

• Reagent Capacity: 400 slides per batch

• Number of Reagent Bottles: 5 bottles, 1L each

• Waste Container: 1 bottle, 5L capacity

• Temperature Control: Maintains stable temperature throughout the process to ensure staining effectiveness

• Compatible Specimen Types: Gynecological and non-gynecological samples

• Functions: Slide preparation, staining, laser printing

• Detection Function: Automatic sample position detection

• Field of View Diameters: 13 mm, 15 mm, 17 mm, 23 mm

• Operating Temperature: 10°C to 30°C

• Humidity: ≤85%



Key Features:

High Automation:

• Robotic assistance significantly reduces manual labor.

Multi-functionality:

• Integrates laser printing, slide processing, and staining in one system.

Smart Operation:

• Enables sample identification and registration, real-time monitoring, and error alerting.

Advanced Technology:

• Utilizes cutting-edge technology for precise concentration measurement of analytes.

The DC-2000 Plus system has been officially registered with the Department of Health and is classified as a Class B medical device.

In addition, the DC-2000 Plus system has obtained international certifications such as ISO 13485:2016 and CE IVD.
